Hardware

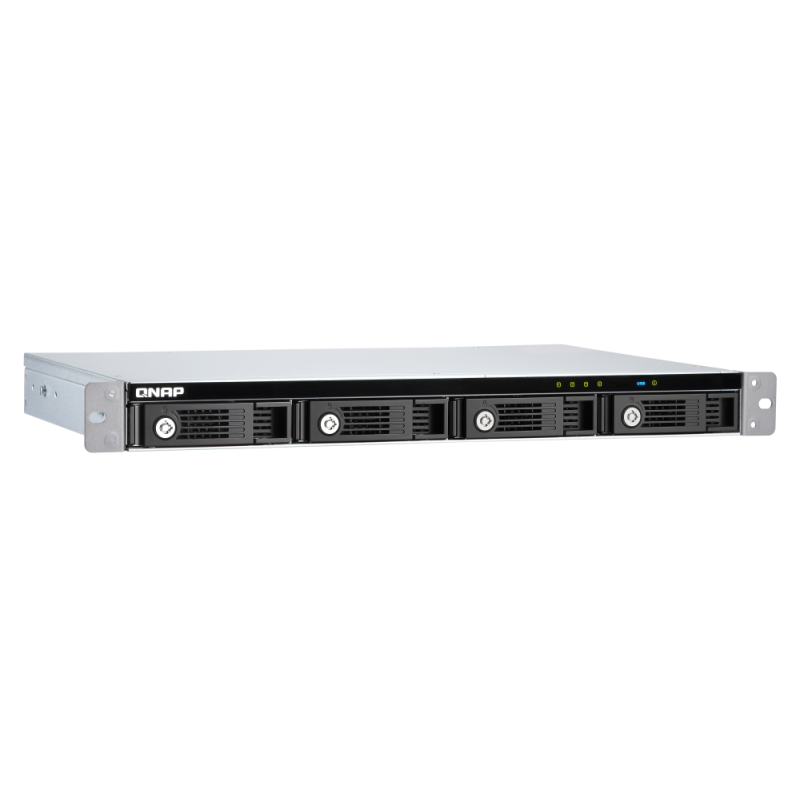

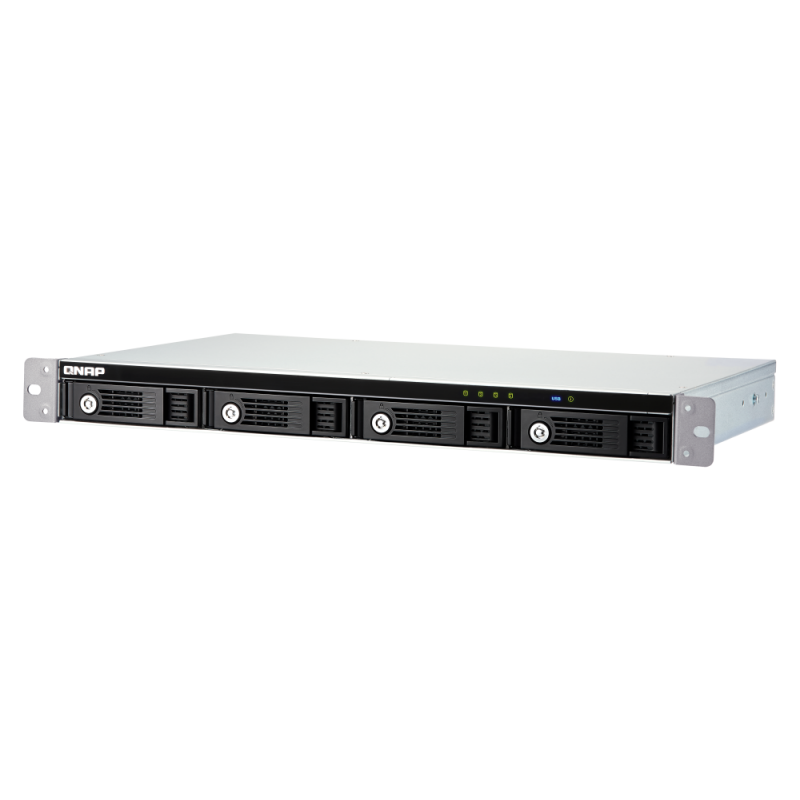

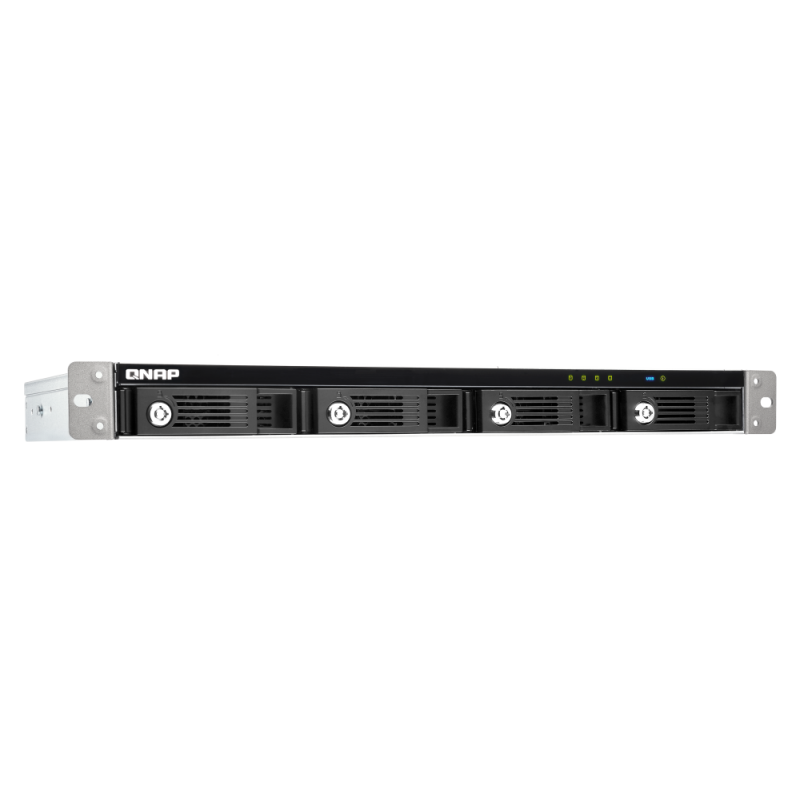

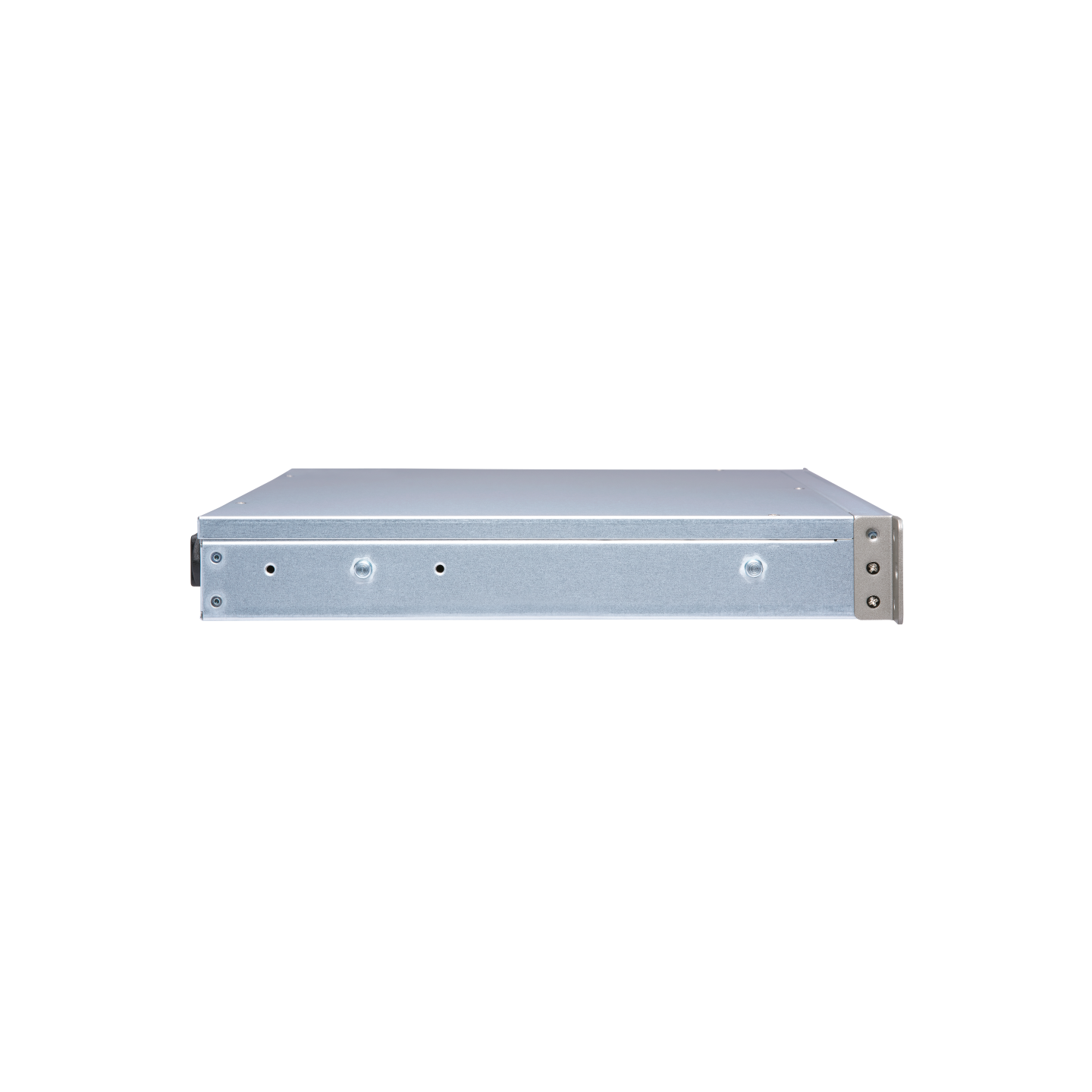

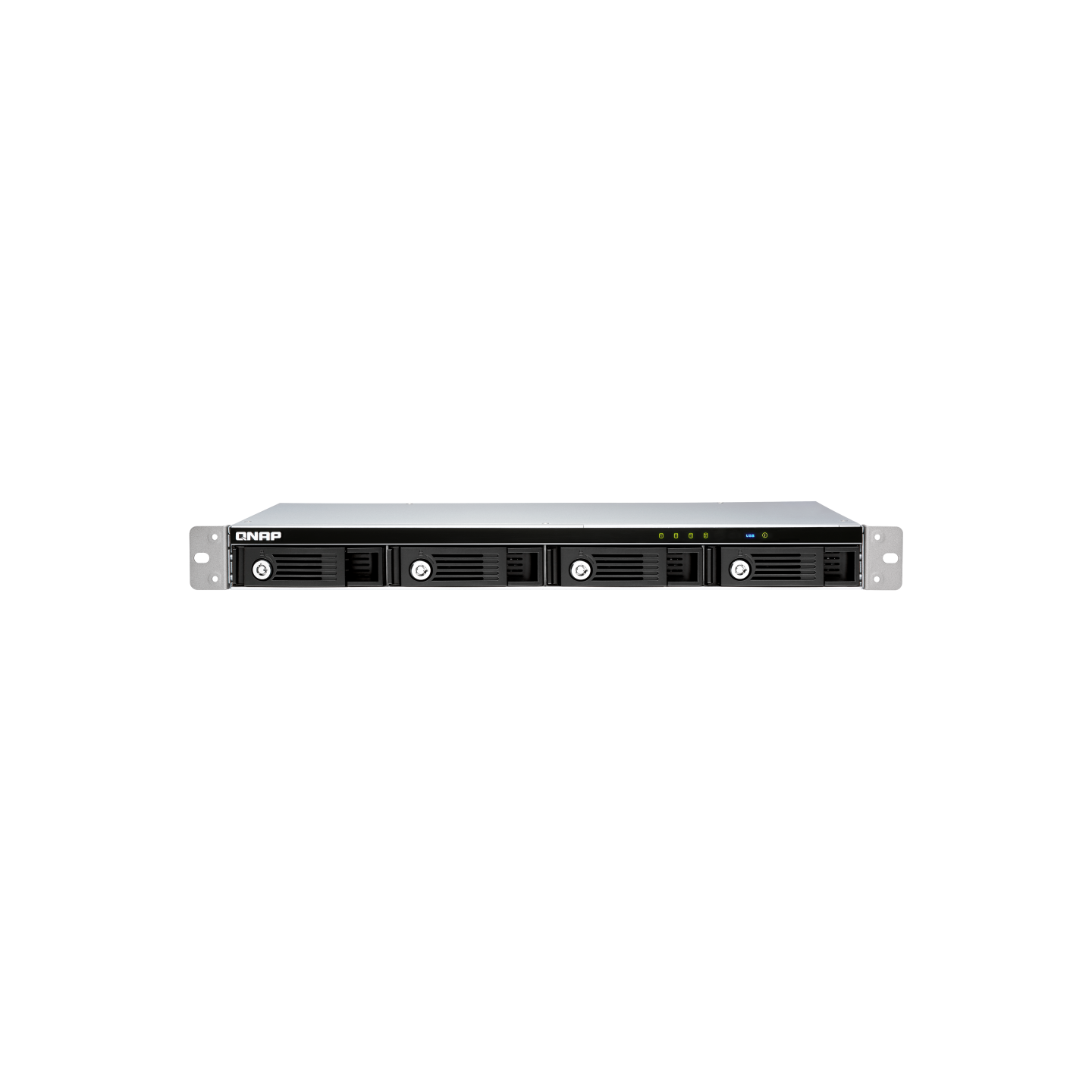

TR-004U

JBOD Connection Interface USB

Main chip Microprocesador con RAID de hardware

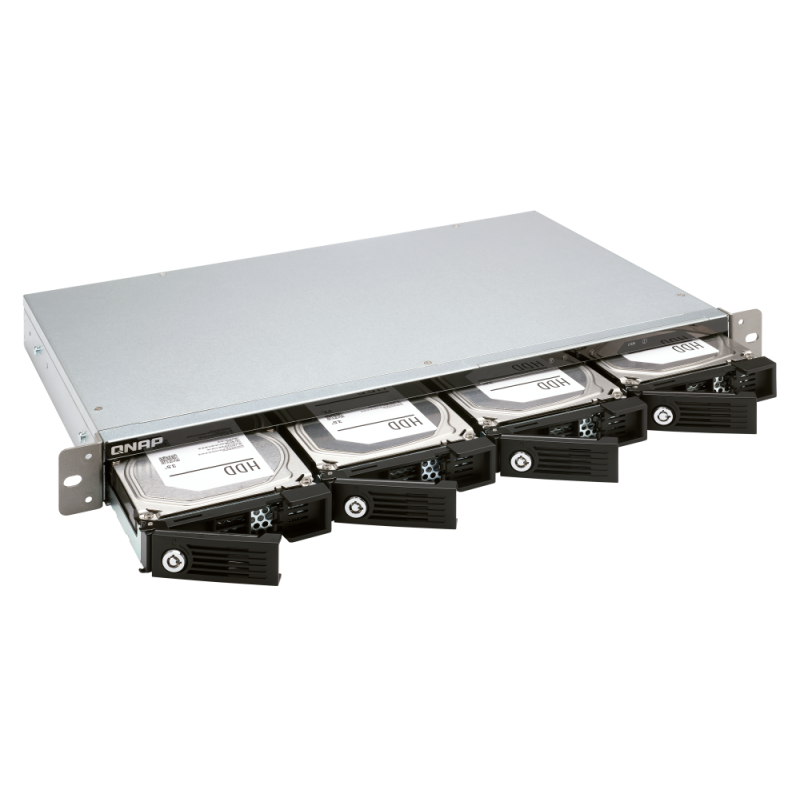

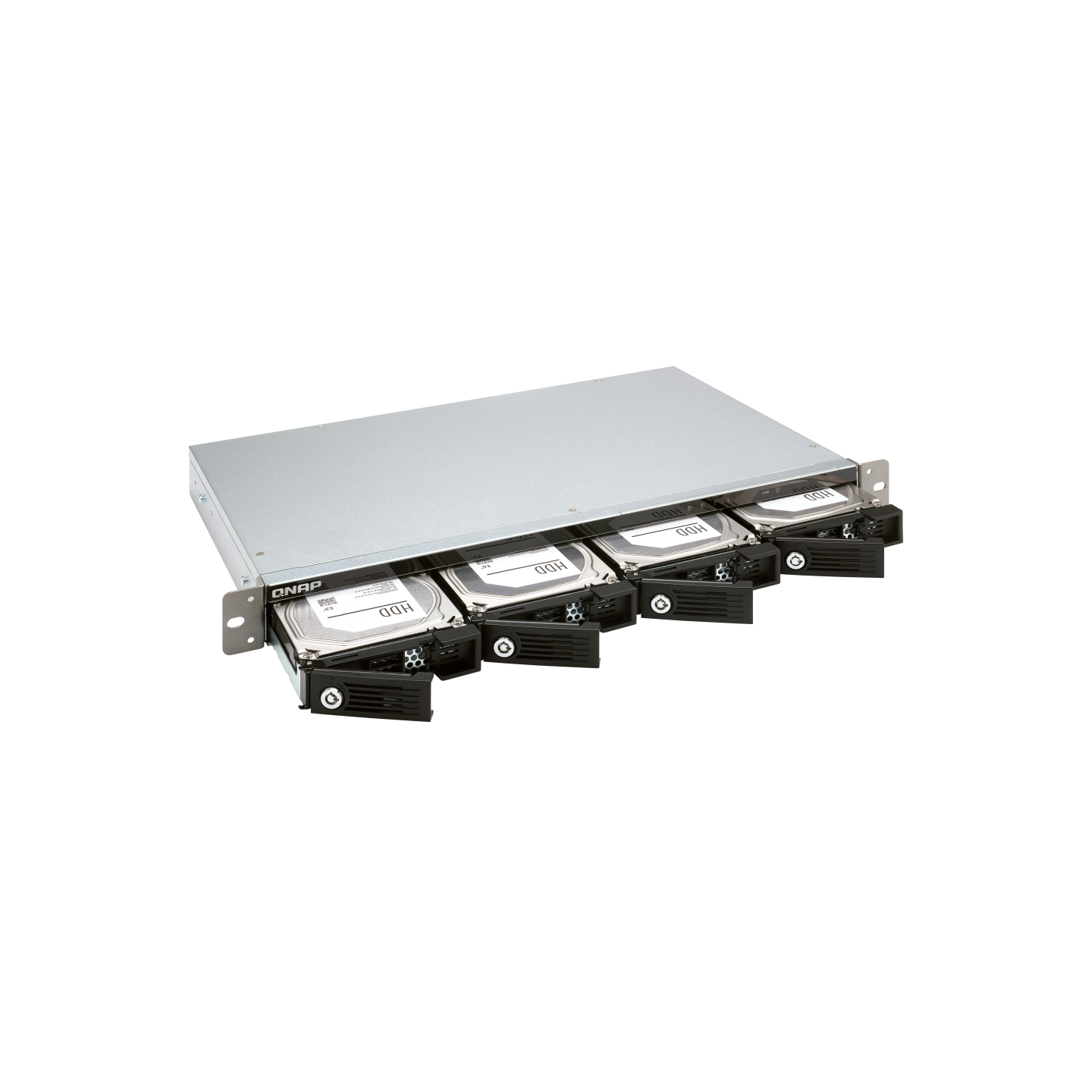

Drive Bay 4 x 3.5 pulgadas

El sistema se envía sin HDD.

Para la lista de compatibilidad de HDD, por favor visite https://www.qnap.com/compatibility/

Drive Compatibility Ranura SATA de 3.5 pulgadas 3Gb/s (soporta SATA 6Gb/s discos duros con compatibilidad hacia atrás, rendimiento limitado a 3Gb/s)

Ranura SATA de 2.5 pulgadas 3Gb/s (soporta SATA 6Gb/s discos duros con compatibilidad hacia atrás, rendimiento limitado a 3Gb/s)

Ranura SATA de 2.5 pulgadas 3Gb/s (soporta SATA 6Gb/s discos duros de estado sólido con compatibilidad hacia atrás, rendimiento limitado a 3Gb/s)

Solo puede usar un tipo de disco (HDD o SSD) en un grupo RAID. No se admite la combinación de diferentes tipos de disco en un grupo RAID.

TR-004U no admite el QDA-A2AR/QDA-A2MAR.

Hot-swappable

USB 3.2 Gen 1 Port 1 puerto USB 3.2 Gen 1 Tipo-C (USB 3.2 Gen 1)

Form Factor Montaje en rack de poca profundidad 1U

Dimensions (HxWxD) 44 × 439 × 291 mm

Excluye el gancho de oreja y la parte que sobresale de la unidad de fuente de alimentación.

Weight (Net) 4.77 kg

Weight (Gross) 5.67 kg

Operating Temperature 0 - 40°C (32°F - 104°F)

Storage Temperature -20 - 70°C (-4°F - 158°F)

Relative Humidity 5~95% HR sin condensación, bulbo húmedo: 27˚C (80.6˚F)

Power Supply Unit 100W de marco abierto, Entrada: 100V-240V ~ / 3.5A, 50Hz-60Hz

Power Consumption: HDD Sleep Mode 4.79 W

Power Consumption: Operating Mode, Typical 18.9 W

Probado con unidades totalmente llenas.

Fan 2 x 40mm, 12VDC

System Warning Timbre

Kensington Security Slot

QTS / QuTS hero

Windows

Ubuntu

Mac

Used as Hardware RAID (DAS)

Standard Warranty 3

RAID 10

RAID 5+ Spare

RAID 5

RAID 1

RAID 0

JBOD

Single Disk

Software

System modes

Individual, JBOD, hardware RAID 0/1/5/10, Software control (Software control requires a QNAP NAS or Windows/macOS utility)

Note: QNAP recommends using only one disk type (HDD or SSD) in a RAID group.

Features

RAID rebuild in RAID 1/5/10.

System, fan, and drive failure monitoring with LED and audio alerts.

System sleep during USB cable disconnection and host device hibernation* or shut down.

*Some hosts may not be supported.

The unused disk drives automatically become the hot spare ones for the RAID 1 and RAID 5 types.

Minimum system requirements

QNAP NAS or PC with a USB Type-A or Type-C port

Minimum operating system requirements

QNAP NAS: QTS 4.3.6 (or later)

Windows: Windows 8.1 (or later), Windows Server 2012 R2 (or later)

Mac: macOS X 10.13 (or later)

System fan

5-speed automatic fan control

Software utility

Windows/macOS: QNAP External RAID Manager

Supported File Systems

NAS storage (EXT4), External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT*)

* Purchase of an exFAT driver license from the License Center is required.

QTS Storage Management Features

General & Extenal Storage Mode

Overview device, disks, and RAID info and status

Support for disk’s S.M.A.R.T. monitoring

Determine location of drives using LEDs and system speakers

External RAID software configuration

RAID rebuild - Hot spare disk configuration

RAID recovery

Firmware update

Format partition

Erase partition and device

NAS Storage Mode

The storage pools and volumes in the expansion enclosures are configured via the QTS operating system.

Volume and LUN snapshots - Snapshot Manager

Snapshot Cloning - Snapshot Replica - Snapshot Vault

Support for Windows Previous Versions (CIFS/SMB)

Show less...

Software utility Features

QNAP External RAID Manager

Overview device, disks, and RAID info and status

Support for disk’s S.M.A.R.T. monitoring

Determine location of drives using LEDs and system speakers

Desktop notifications for device alerts

External RAID software configuration

RAID rebuild - RAID rebuild speed customization

RAID recovery - Firmware update

Notifications when new firmware and application versions are available

System event logs for troubleshooting

Export event logs to .csv file
